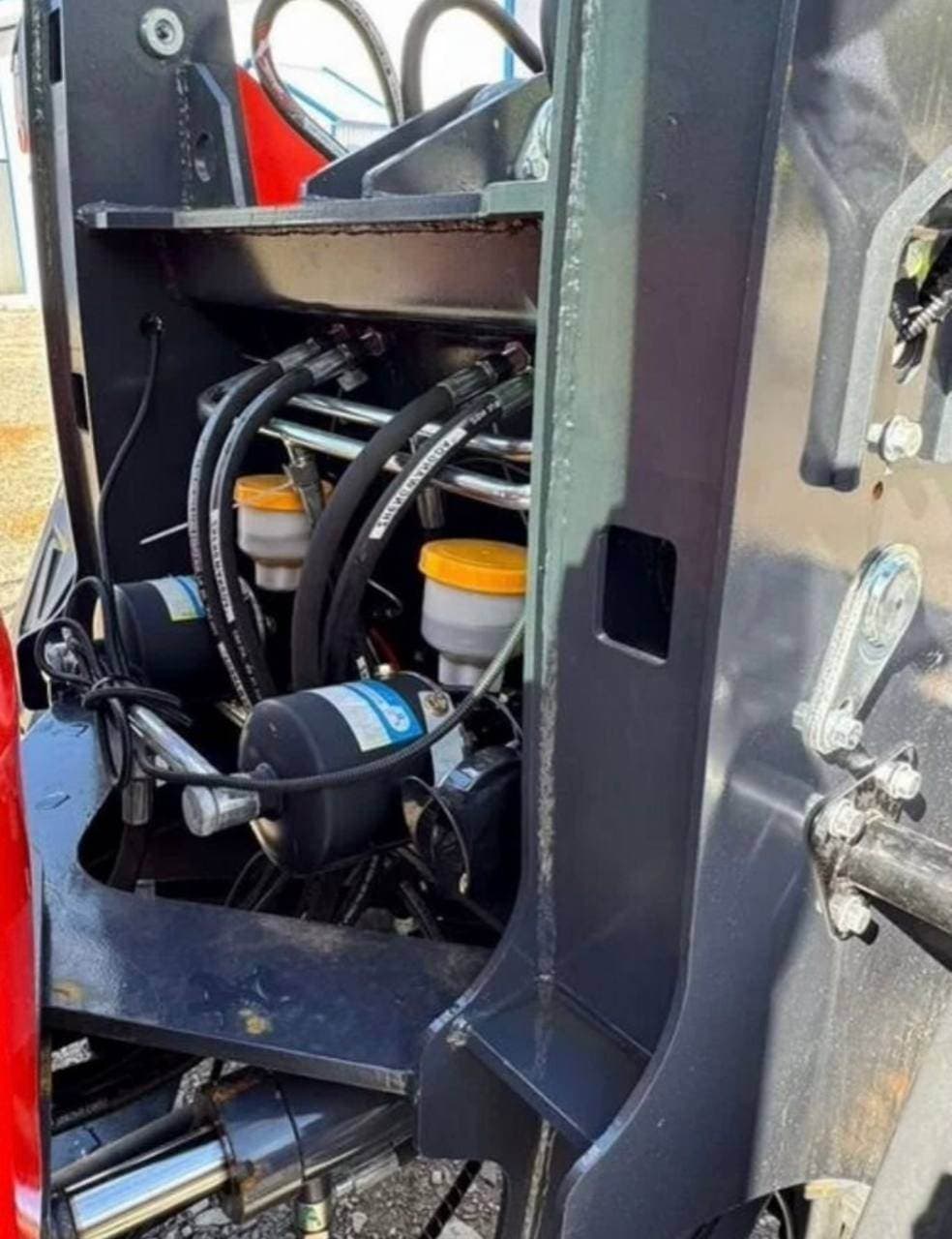

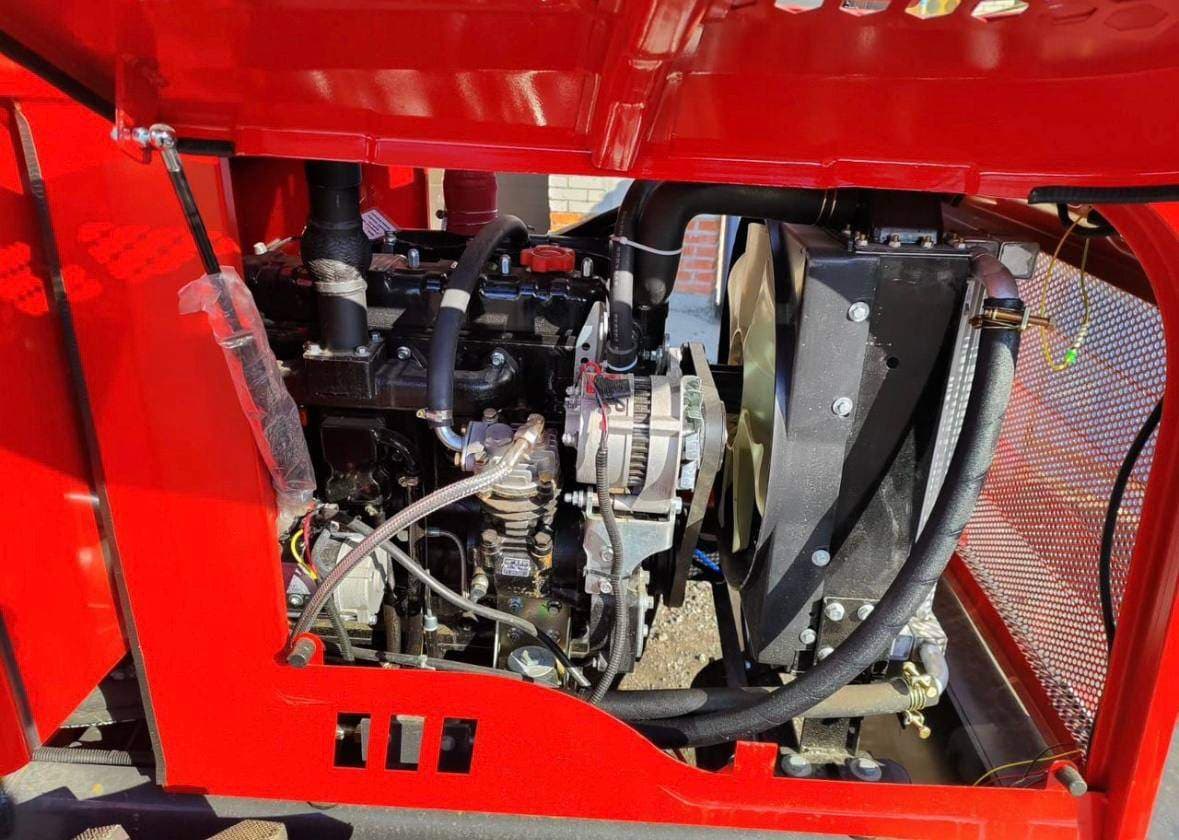

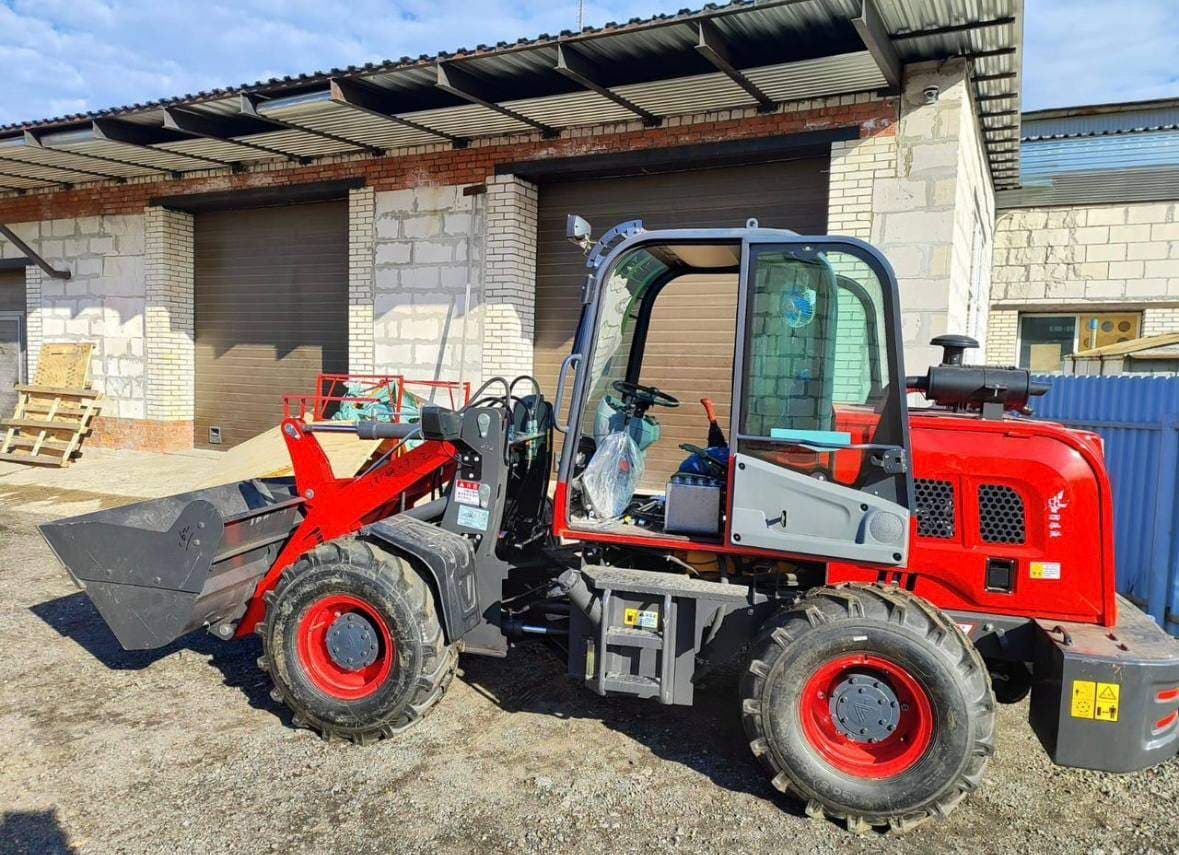

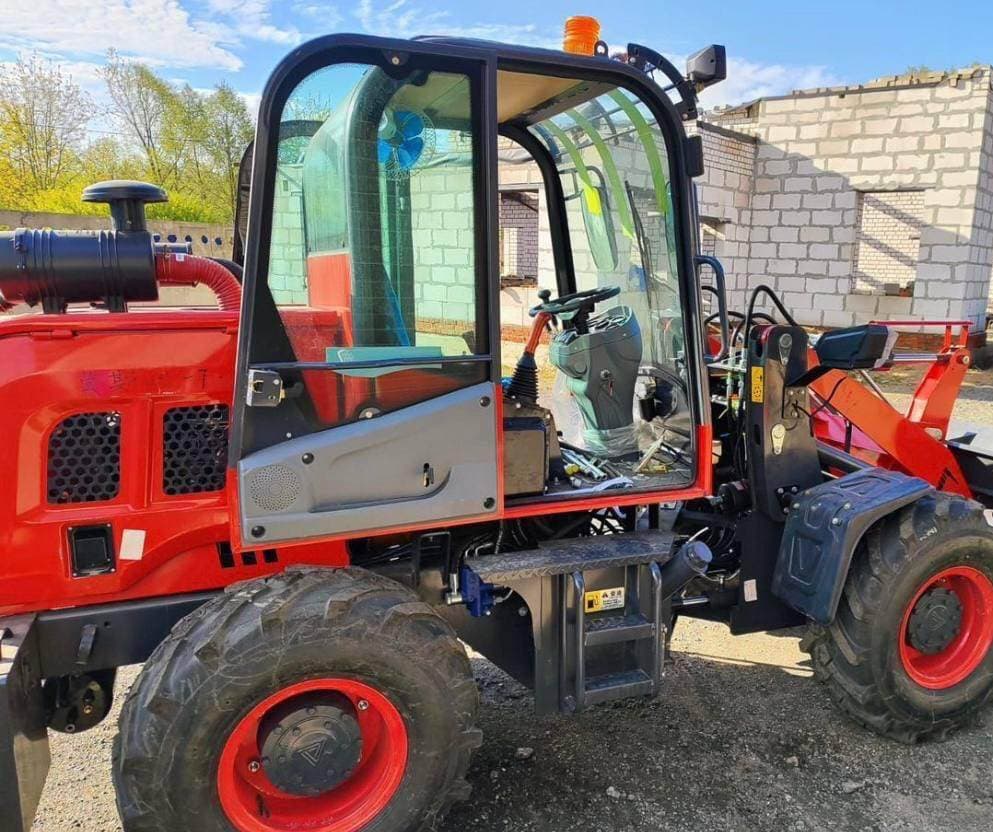

Brand-new compact Chinese front loader with a 1,000kg lifting capacity and an enlarged 1m³ bucket. Its narrow 1.55m width makes it useful for farms, warehouses, construction sites and other areas where a full-size loader would be difficult to operate. Powered by a naturally aspirated four-cylinder 57HP diesel engine with a mechanical fuel-injection pump. The automatic transmission has three driving ranges: low, high and transport, with a maximum speed of approximately 35km/h. The loader is fitted with hub-reduction axles and an additional pair of hydraulic connections for compatible attachments. The enclosed cab also has a heater. Specifications: * Lifting capacity: 1,000kg * Bucket capacity: 1m³ * Bucket width: 1,550mm * Maximum lift height: 3.1m * Dump height: 2.8m * Machine weight: 2,200kg * Weight with 300kg concrete counterweight: 2,500kg * Dimensions: 4.8 × 1.55 × 2.2m * Brakes: hydraulic with air assistance * Brake disc diameter: 300mm
